T series

Features and Benefits

Tfilters are designed for easy and fast chassis mounting.
All filters provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
Various terminal options allow you to select the desired connection style.

Typical Applications

Electrical and electronic equipment
Consumer goods
Household equipment
Medical equipment
Electronic data processing equipment
Office automation and datacom equipment
Various noisy applications requiring high filter performance

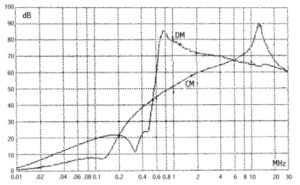

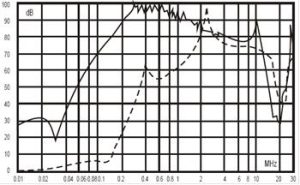

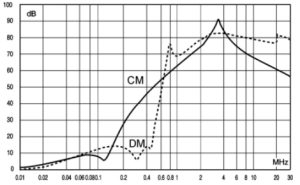

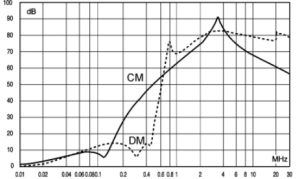

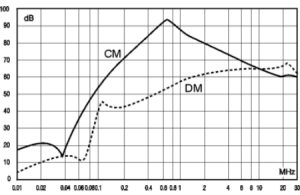

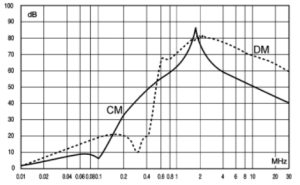

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

10A

15A

20A

30A

Mechanical Data

DL-2T1、DL-3T1、DL-6T1、DL-10T1

DL-15T1

DL-20T1

DL-30T31

Technical Specifications

Maximum continuous operating voltage

250VAC

50/60Hz

Nominal operating voltage

230VAC

Rated currents

2 to 30 A @ 40°C

Operating frequency

DC to 60 Hz

High potential test voltage

P –> N 1500 VDC for 2 sec

P –> PE 1500 VAC for 2 sec

Temperature range (operation and storage)

-25 °C to + 85 °C (25/085/21)**

Altitude

2000m (above derating applies)**

Certified to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

maximum RMS operating voltage at rated frequency or the maximum DC operating voltage.

for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner sales office.

Filter Selection Table

Filter

Rated current @40℃（25℃）

[A]

Leakage current*

@250 VAC/50Hz

[mA]

Inductance**

L1 L2

[mH] [mH]

Capacitance**

Cx Cy

[µF] [nF]

Resistance**

[kΩ]

Weight

[ɡ]

DL-2T1

0.5

13 13

0.1 2.2

1000

160

DL-3T1

0.5

3.4 6.8

0.47 3.3

1500

160

DL-6T1

0.5

1.0 1.0

0.1 3.3

1500

160

DL-10T1

0.5

0.5 0.5

0.1 3.3

1500

140

DL-15T1

0.5

0.7 0.7

0.1 3.3

1500

240

DL-20T1

0.8

0.84 0.84

0.47 4.7

1500

400

DL-30T1

0.8

0.38 0.25

0.22 4.7

1000

620

Maximum leakage under usual AC operating conditions (acc. IEC 60939-3).

Note: if the neutral line is interrupted, worst case leakage could reach twice this level.

Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10%

Dimensions

Frame size

10A

15A

20A

30A

Tolerances

103

134.5

63.2

105

51.9

98.5

38.5

50.8

95.3

19.5

18.8

Φ5

1.8

4.5

6.5

0.6

0.8

All dimensions in mm; 1 inch = 25.4mm
