Product

JSF05

• Prevention of overvoltage on the motor • Reduction of motor noise • Reduction of motor losses • Increase motor service life • Possible to apply long motor cables

• Reduction of drive output voltage dv/dt • Reduction of voltage stress at motor windings • Protect AC motors from destructive effect of peak voltages • Increase of motor service life • Improvement of system reliability

JOR3005

• Reduction of drive output voltage dv/dt • Reduction of motor temperature • Increase of motor service life • Compact and economic open frame design • Standard catalog reactors up to 1100 A • UL rated materials used

JIR2052

• 2% 3-phase line reactor for 400 V network • Reducing harmonics on the mains side • Reducing commutation notches • Limiting inrush current • Reliable and economical solution for mitigating mains disturbances

JIR2012

• 4% 3-phase line reactor for 400 V network • Reducing harmonics on the mains side • Reducing commutation notches • Limiting inrush current • Reliable and economical solution for mitigating mains disturbances

PHF10

• The industry standard for 6-pulse rectifier and motor drives • Filters for diode rectifier with or without DC- link choke and thyristor rectifier • Best-in-class partial load performance • Most compact design • Plug and play, ready to use

PHF05

PC Filters

Rated currents from 1 to 16 A
PCBMounting
Compact Unit

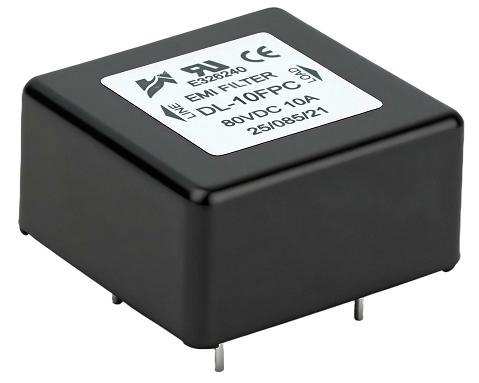

FPC Filters

Rated currents from 1 to 10 A
PCBMounting
Compact Unit

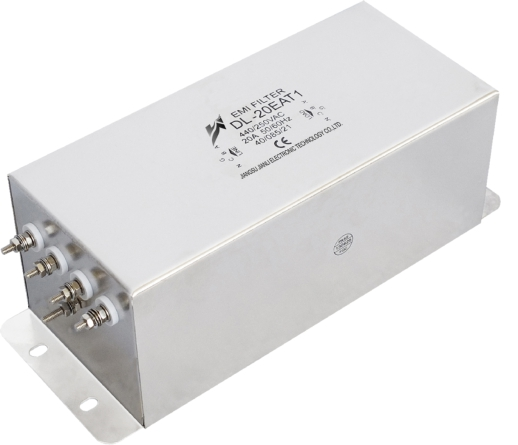

EAT1 Series

Rated currents from 5 to 35 A
Low leakage current
General purpose
Compact unit，Easy to install

→
