Features and Benefits

  • Standard interface: Equipped with IEC standard sockets, such as C14 interfaces in IEC 60320-1, compatible with different international power cord designs, making it convenient for devices to be used in various regions around the world..
  • High conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
  • 2-pole rocker switch.
  • Dual-fuse holder.

Typical Applications

  • Medical equipment
  • Industrial Control and Electronic Equipment
  • Office and Testing Measurement Equipment
  • Consumer Electronics and Home Appliances
  • Communication and Network Equipment

Typical electrical schematic

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

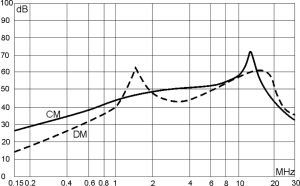

3A

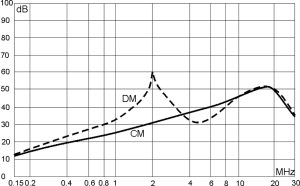

6A

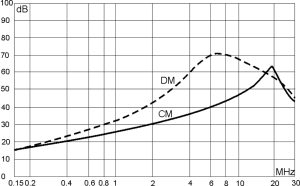

10A

Mechanical Data

DL-3DZ2KR2、DL-6DZ2KR2、DL-10DZ2KR2

All dimensions in mm; 1 inch = 25.4mm

Approvals & Compliances
