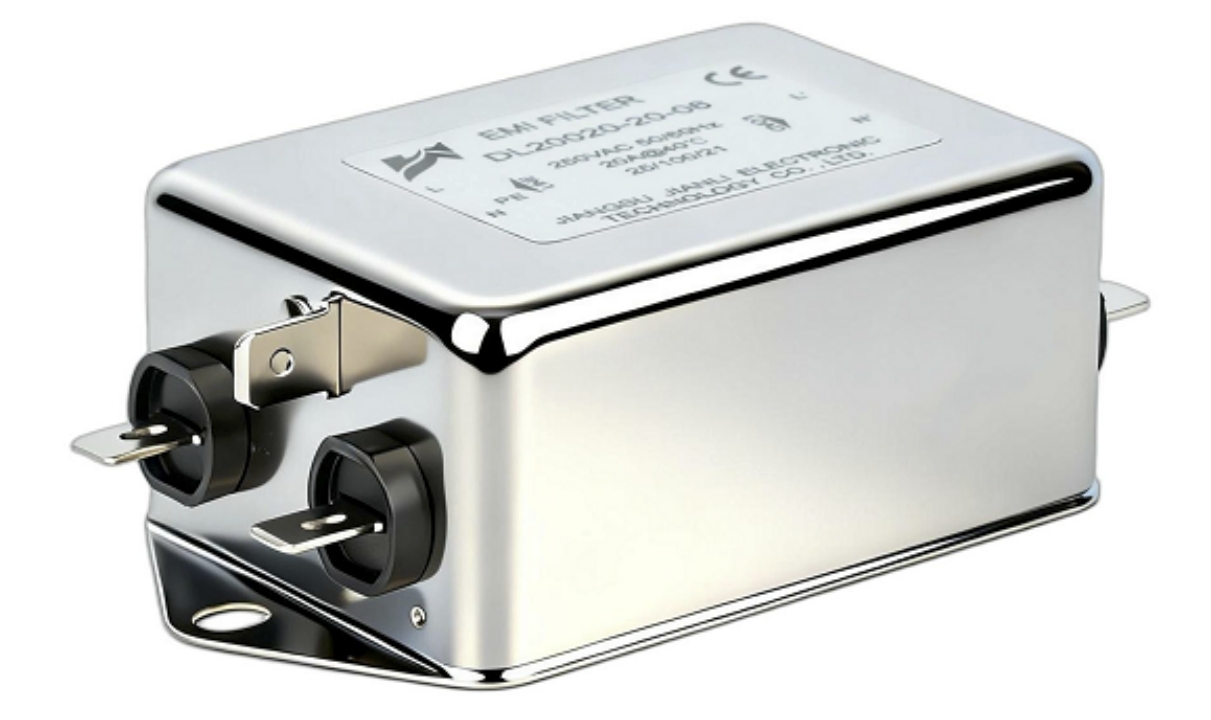

Features and Benefits

  • D1filters are designed for easy and fast chassis mounting.
  • All filters provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
  • Allfilters can be used to cover a broad range of usage and they offer a good size/amperage ratio.
  • Various terminal options allow you to select the desired connection style.

Typical Applications

  • Electrical and electronic equipment
  • Consumer goods
  • Household equipment
  • Medical equipment
  • Office automation equipment
  • Datacom equipment

Typical electrical schematic

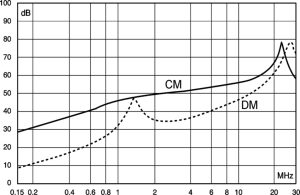

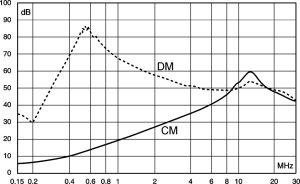

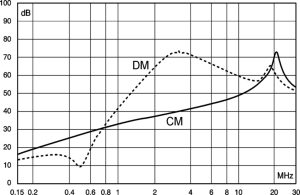

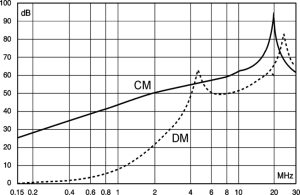

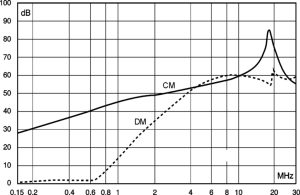

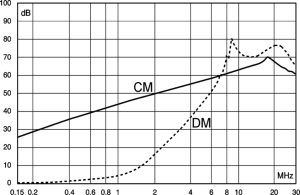

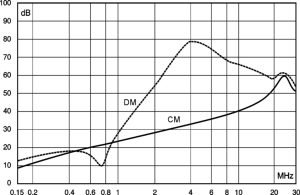

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

3D1

3D3

6D1

6D3

20D3

30D1

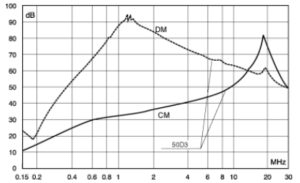

50D3

  60D3

100D3

120D3

Mechanical Data

3D1：

3D3、6D3：

6D1、10D、20D1：

20D3：

30D1：

50D3、60D3：

100D3、120D3：

All dimensions in mm; 1 inch = 25.4mm

Approvals & Compliances
