Features and Benefits

  • Outstanding high-frequency filtering performance: Compared to ordinary filters, the through-hole structure reduces parasitic parameters of circuit leads, offering better interference attenuation at high frequencies (such as 1MHz–1GHz), making it suitable for devices sensitive to high-frequency interference.
  • Strong electromagnetic shielding: The metal casing forms a closed shielding cavity, preventing interference ‘diffraction’, and is especially suitable for environments with complex electromagnetic conditions (such as industrial control cabinets and communication equipment compartments).
  • Easy installation and grounding: Panel-mounted installation requires no complex fixing structures, the casing is directly grounded, providing a short grounding path with low impedance, greatly improving interference dissipation efficiency.

    Typical Applications

    • Shielded Room
    • Communication and RF equipment
    • Medical and Precision Instruments
    • Industrial control equipment

    Typical electrical schematic

    DL-16FTC2

    DL-30FTC1

    DL-65FTC3

    DL-250FTC2

    DL-50FTC2

    DL-100FTC2

    DL-400FTC

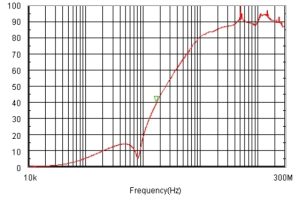

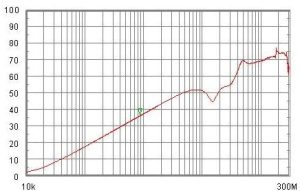

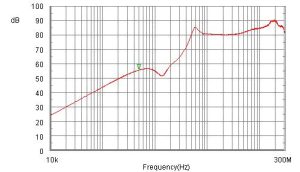

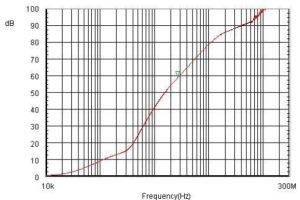

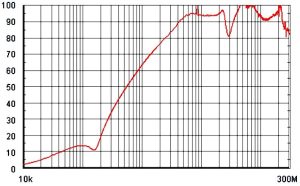

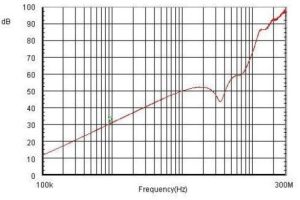

    Typical Filter Attenuation

    Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

    16A

    30A

    50A

    65A

    100A

    250A

    400A

    Mechanical Data

    DL-16FTC2

    DL-30FTC1

    DL-50FTC2

    DL-65FTC3

    DL-100FTC2

    DL-250FTC2

    DL-400FTC

    All dimensions in mm; 1 inch = 25.4mm

    Tolerances according to: ISO 2768-m/EN 22768-m
