Features and Benefits
- Outstanding high-frequency filtering performance: Compared to ordinary filters, the through-hole structure reduces parasitic parameters of circuit leads, offering better interference attenuation at high frequencies (such as 1MHz–1GHz), making it suitable for devices sensitive to high-frequency interference.
- Strong electromagnetic shielding: The metal casing forms a closed shielding cavity, preventing interference ‘diffraction’, and is especially suitable for environments with complex electromagnetic conditions (such as industrial control cabinets and communication equipment compartments).
- Easy installation and grounding: Panel-mounted installation requires no complex fixing structures, the casing is directly grounded, providing a short grounding path with low impedance, greatly improving interference dissipation efficiency.
Typical Applications
- Shielded Room
- Communication and RF equipment
- Medical and Precision Instruments
- Industrial control equipment
Typical electrical schematic

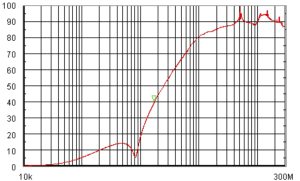

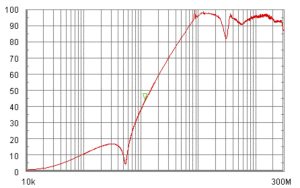

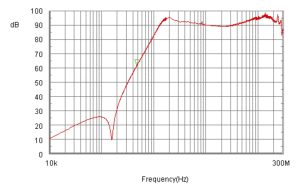

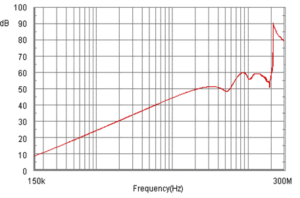

Typical Filter Attenuation
Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)
25A
50A
65A
250A

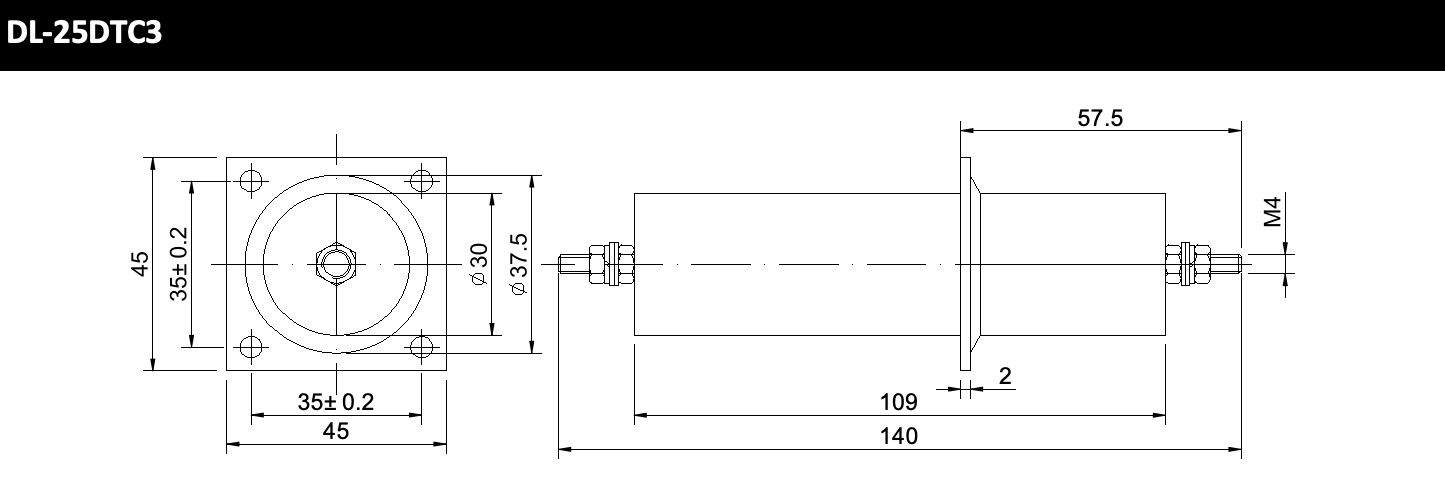

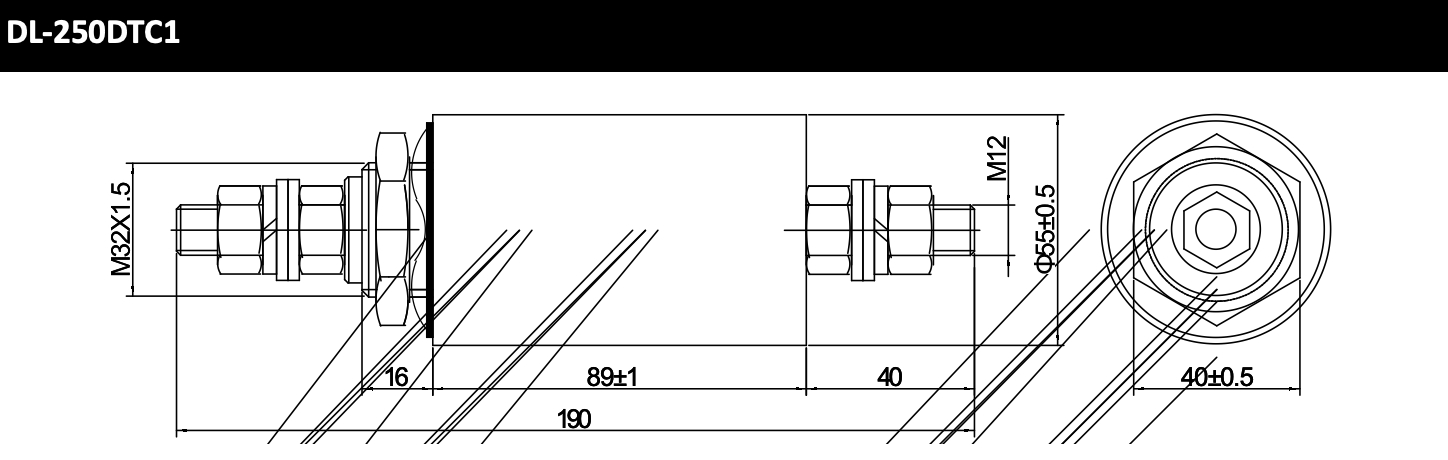

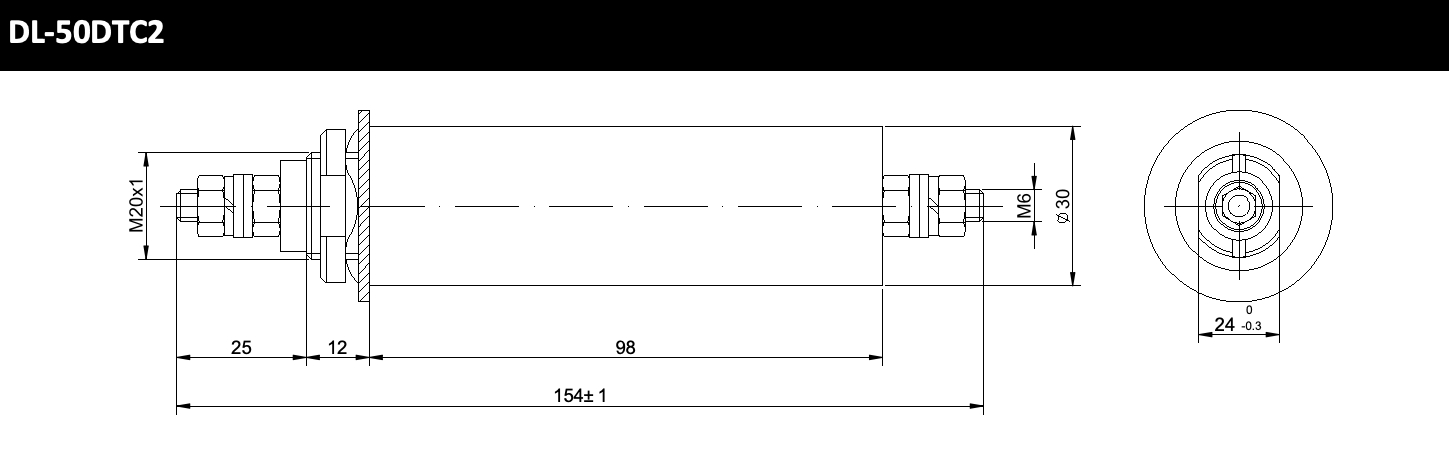

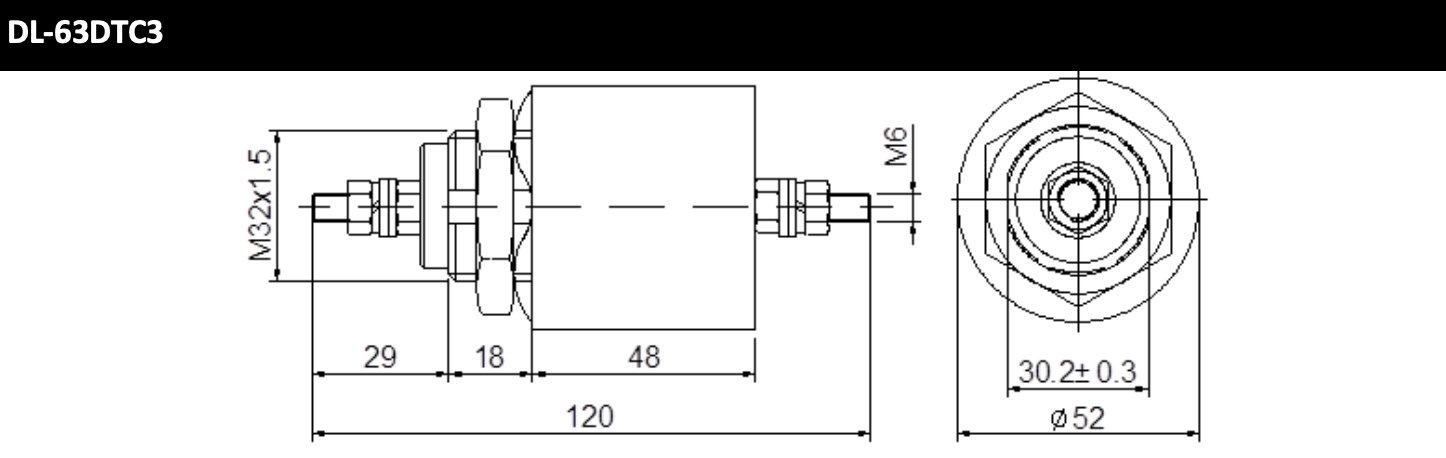

Mechanical Data
All dimensions in mm; 1 inch = 25.4mm
Approvals & Compliances
