EBK5 Series

Features and Benefits

High-power filter for Class A compliance. With approval measurement also Class B compliance possible for some applications.
Extremely compact high-current filter solution with minimum space requirement.
EBK5 filters are suited for power supplies for industrial installations.
EBK5 also improves conducted immunity of installations.

Typical Applications

High-power motor drives, inverters and converters
Industrial three-phase systems
Large UPS
Machinery
Mining equipment
Wind turbines

Typical electrical schematic

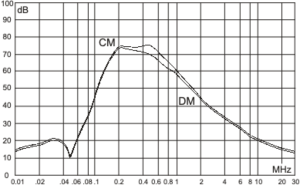

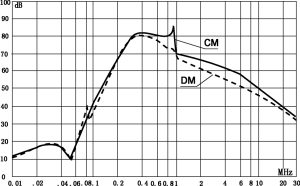

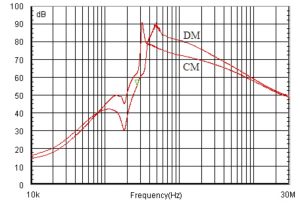

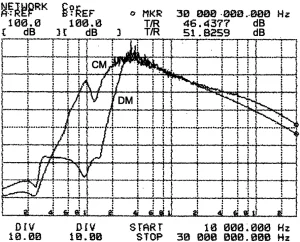

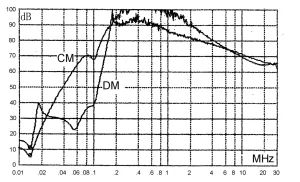

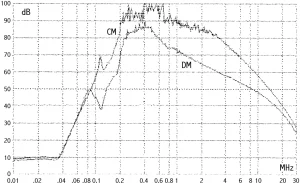

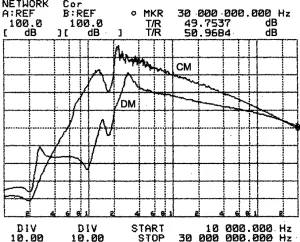

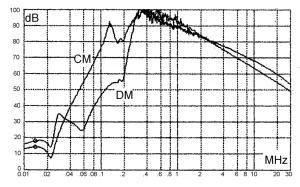

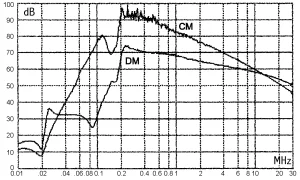

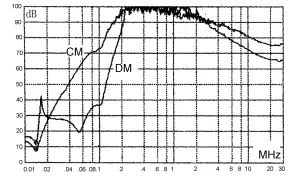

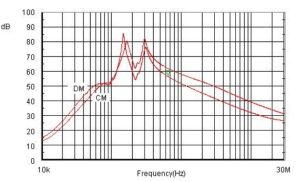

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

10A

16A

25A

35A

50A

65A

80A

100A

130A

160A

200A

1000A

1200A

1600A

2000A

5A、10A、16A

25A to 200A

1000A、1200A、1600A

2000A

Technical Specifications

Maximum continuous operating voltage

480/275 VAC

50/60Hz

Nominal operating voltage

480/275 VAC

Rated currents

5 to 2000 A @ 50°C

Operating frequency

50/60Hz

Overload capability

4x rated current at switch on,

1.5x rated current for 1 minute, once per hour

High potential test voltage

P –> PE 2250 VDC for 2 sec

P –> P 1500 VDC for 2 sec

Temperature range (operation and storage)

-40°C to + 85 °C (40/085/21)**

Protection category

IP 00

Flammability corresponding to

UL 94 V-0

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

Filter Selection Table

Filter

Rated current @40℃

[A]

Inductance**

ΣL

[mH]

Capacitance**

ΣCx ΣCy

[µF] [nF]

Resistance**

R1 R4

[kΩ] [kΩ]

Weight

[kg]

DL-5EBK5

4.0~8.2

2.1~2.7 187~229

1500 680

1.3

DL-10EBK5

3.6~7.2

2.1~2.7 187~229

1500 680

1.56

DL-16EBK5

3.3~6.7

2.1~2.7 187~229

1500 680

1.56

DL-25EBK5

2.4~4.8

2.1~2.7 187~229

1500 680

3.43

DL-35EBK5

2.8~5.7

2.1~2.7 187~229

1500 680

3.44

DL-50EBK5

1.3~2.8

2.4~2.8 287~352

1500 680

3.46

DL-65EBK5

1.0~2.1

2.4~3.0 287~352

1500 680

3.78

DL-80EBK5

1.1~2.3

2.4~3.0 287~353

1500 680

7.94

DL-100EBK5

100

≥0.9

2.4~3.0 270~330

1500 680

8.34

DL-130EBK5

130

≥0.72

4.9~6.1 611~748

1500 680

9.24

DL-160EBK5

160

≥0.72

4.9~6.1 611~748

1500 680

9.46

DL-200EBK5

200

0.2~0.44

4.9~6.1 611~748

1500 680

10.54

DL-1000EBK5

1000

≥0.036

9.6~14.4 2112~3168

R1~R9=1000

DL-1200EBK5

1200

≥0.036

9.6~14.4 2112~3168

R1~R9=1000

DL-1600EBK5

1600

≥0.018

10.8~13.2 2200~2800

R1~R9=1000

DL-2000EBK5

2000

≥0.024

8.88~13.3 1600~2400

R1~R9=1000

Maximum leakage under usual AC operating conditions (acc. IEC 60939-3).

Note: if the neutral line is interrupted, worst case leakage could reach twice this level.

Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10%

Dimensions

Frame size

10A

16A

25A

35A

50A

65A

80A

202

261

384

160

220

320

100

185

184

243

354

155

6.4

9.4

1.0

280

378

Frame size

100A

130A

160A

200A

1000A

1200A

1600A

2000A

384

356

320

280

376

185

230

320

220

354

290

155

255

348

128

200

93.5

114

6.4

M12

9.4

126

1.0

1.5

φ12.5

φ13

100

378

126

φ13

φ17
