DL20070 Series

Features and Benefits

DL20070two-stage filters are designed for easy and fast chassis mounting.
DL20070N versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1.
DL20070S versions with low capacitance to earth for safety critical applications with necessity for low leakage currents.
All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
DL20070 two-stage filters are designed for high frequency attenuation
DL20070 filters are also available as single-stage filters (DL20030 series).
DL20070 filters are also available with differential mode choke (DL20080 series)
Various terminal options allow you to select the desired connection style.

Typical Applications
- Electrical and electronic equipment
- Consumer goods
- Household equipment
- Building automation
- Industrial applications
- Machinery
- Medical equipment
- Electronic data processing equipment
- Office automation and datacom equipment
- Various noisy applications requiring high filter performance
- Single Phase Motor Drives

  Typical electrical schematic

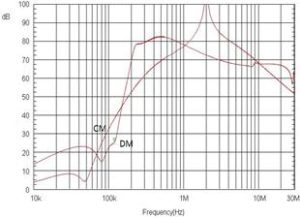

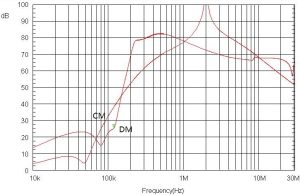

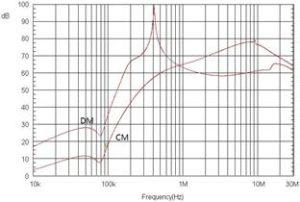

  Typical Filter Attenuation

  Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

  1A

  3A

  6A

  10A

  12A

  16A

  25A

  36A

  Mechanical Data

  Connection style -06, 1 and 3A types

  Connection style -06, 6 to 12 A types

  Connection style -06, 16 A type

  Connection style -08,16 A type

  Connection style -08, 25 A and 36 A types

Technical Specifications

Maximum continuous operating voltage

250VAC, 50/60Hz

250VDC

Nominal operating voltage

230VAC

Rated currents

1 to 36 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2250 VDC for 2 sec

P –> N 1100 VDC for 2 sec

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Temperature range (operation and storage)

-25 °C to +100 °C (25/100/21)**

Altitude

2000m (above derating applies)**

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>1,550,000 h @ 40°C/230 V

1,600,000 h (N types) @ 40°C/230 V

maximum RMS operating voltage at rated frequency or the maximum DC operating voltage.

for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner sales office.

Filter Selection Table

Filter

Rated current

@40℃ (25℃)

[A]

Leakage current*

@250 VAC/50Hz

（@120VAC/60Hz）

[mA]

Power loss @25℃/DC

[W]

Inductance**

[mH]

Capacitance**

Cx Cy

[µF] [nF]

Resistance**

[kΩ]

Weight

[ɡ]

DL20070-1-06

1(1.2)

0.36(0.38)

2.4

0.33 2.2

1000

190

DL20070-3-06

3(3.5)

0.36(0.38)

2.2

9.8

0.47 3.3

470

250

DL20070-6-06

6(6.9)

0.36(0.38)

3.2

7.8

1 4.7

220

450

DL20070-10-06

10(11.5)

0.36(0.38)

9.1

4.5

1 4.7

220

670

DL20070-12-06

12(13.8)

0.66 (0.38)

13.1

3.25

1 4.7

220

670

DL20070-16-06/08

16(18.4)

0.66(0.38)

9.6

2.8

1 4.7

220

1000

DL20070-25-08

25(28.8)

0.66(0.38)

11.6

2.2 4.7

220

760

DL20070-36-08

36(41.4)

0.66(0.38)

13.1

1.23

2.5 4.7

790

Maximum leakage under usual AC operating conditions (acc. IEC 60939-3).

Note: if the neutral line is interrupted, worst case leakage could reach twice this level.

Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10%

Dimensions

Frame size

10A

12A

16A

25A

36A

Tolerances

114.9

119

156

58.5

85.5

45.4

63.2

92.2

98.5

131.2

44.5

56.8

84.5

57.3

51.7

103

109

143

15.6

32.4

32.5

20.45

15.5

42.25

20.45

5.3

4.4

5.3

6.3

6.8

7.4

0.4

0.6

0.4

0.6

Connection style -06

6.3×0.8

Connection style -08

All dimensions in mm; 1 inch = 25.4mm

Tolerances according to: ISO 2768-m/EN 22768-m

Product Detalis

The difference between EMI filter and EMC filter

Never Stopping, Boundless Love—A Look Back at Jianli Technology in 2026

Product Detail

Features and Benefits

Typical Applications

Typical electrical schematic

Typical Filter Attenuation

Mechanical Data

Parameter table

Technical Specifications

Filter Selection Table

Dimensions

Tell me what you need

Maximum continuous operating voltage	250VAC, 50/60Hz 250VDC
Nominal operating voltage	230VAC
Rated currents	1 to 36 A @ 40°C
Operating frequency	DC to 400 Hz
High potential test voltage	P –> PE 2250 VDC for 2 sec P –> N 1100 VDC for 2 sec
Overvoltage category	II acc. IEC 60664-1
Pollution degree	2 acc. IEC 60664-1
Temperature range (operation and storage)	-25 °C to +100 °C (25/100/21)**
Altitude	2000m (above derating applies)**
Design corresponding to	UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
MTBF (Mil-HB-217F)	>1,550,000 h @ 40°C/230 V 1,600,000 h (N types) @ 40°C/230 V

Filter	Rated current @40℃ (25℃) [A]	Leakage current* @250 VAC/50Hz （@120VAC/60Hz） [mA]	Power loss @25℃/DC [W]	Inductance L [mH]**	Capacitance Cx Cy** [µF] [nF]	Resistance** R [kΩ]	Weight [ɡ]
DL20070-1-06	1(1.2)	0.36(0.38)	2.4	22	0.33 2.2	1000	190
DL20070-3-06	3(3.5)	0.36(0.38)	2.2	9.8	0.47 3.3	470	250
DL20070-6-06	6(6.9)	0.36(0.38)	3.2	7.8	1 4.7	220	450
DL20070-10-06	10(11.5)	0.36(0.38)	9.1	4.5	1 4.7	220	670
DL20070-12-06	12(13.8)	0.66 (0.38)	13.1	3.25	1 4.7	220	670
DL20070-16-06/08	16(18.4)	0.66(0.38)	9.6	2.8	1 4.7	220	1000
DL20070-25-08	25(28.8)	0.66(0.38)	11.6	2	2.2 4.7	220	760
DL20070-36-08	36(41.4)	0.66(0.38)	13.1	1.23	2.5 4.7	20	790
