Features and Benefits

  • F6-PVfilters are designed for easy and fast chassis mounting.
  • High-voltage and High-current Resistance: PV systems and EV fast – charging stations usually operate at high voltages and high currents.
  • Wide Temperature Range: DC filters need to work stably in different environmental temperatures.
  • Compact Design: In order to save space in PV and EV systems, DC filters are usually designed to be compact.
  • Various terminal options allow you to select the desired connection style.

Typical Applications

  • PV Inverters
  • PV Energy Storage Systems
  • Centralized/Distributed PV Power Plants
  • EV DC Fast Charging Piles
  • EV On-board Systems
  • Battery Swap Station Energy Storage Modules

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

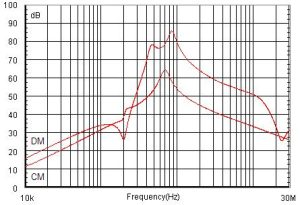

25A

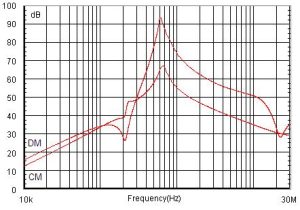

50A

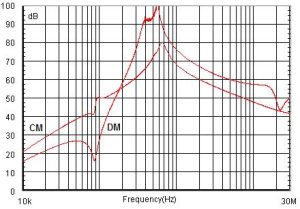

100A

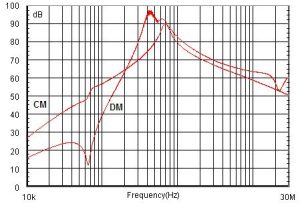

150A

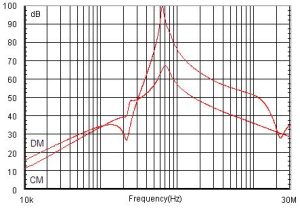

250A

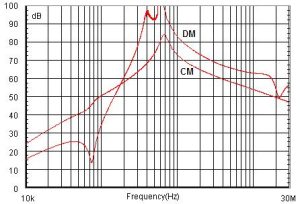

400A

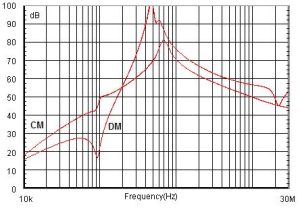

600A

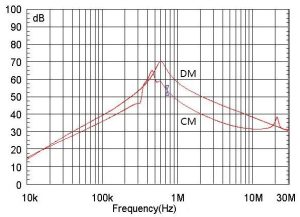

800A

1000A

1700A

Mechanical Data

25A to 150A

250A and 600A

400A、800A、1000A

1700A
