Features and Benefits
- DX filters are designed for easy and fast chassis mounting.
- All filters provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
- Various terminal options allow you to select the desired connection style.
Typical Applications
- Electrical and electronic equipment
- Consumer goods
- Household equipment
- Medical equipment
- Office automation equipment
- Datacom equipment
Typical electrical schematic
Typical Filter Attenuation
Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

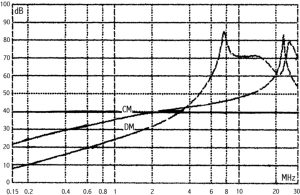

1DX13

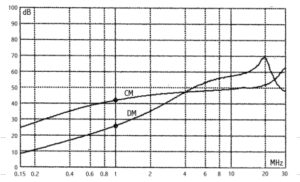

3DX3/6DX3/10DX3

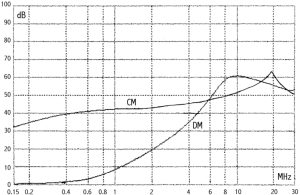

3DX31

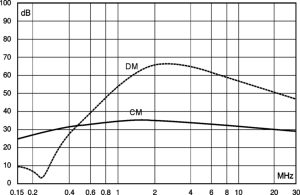

6DX1

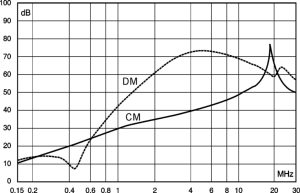

10DX1

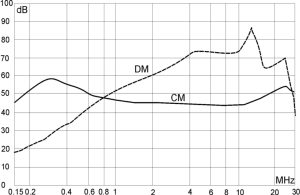

20DX1
Mechanical Data
1DX13
3DX3
3DX31
6DX1、10DX1
6DX3、10DX3
20DX1
All dimensions in mm; 1 inch = 25.4mm
Approvals & Compliances
