DL20080 Series

Features and Benefits

DL20080two-stage filters are designed for easy and fast chassis mounting.
DL20080N versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1.
DL20080S versions with low capacitance to earthfor safety critical applications with necessity for low leakage currents.
All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
DL20080 two-stage filters are designed with good low frequency attenuation.
DL20080 filters are also available as single- stage filters.
DL20080 filters are also available with two common mode choke configuration (DL20070 series)
Various terminal options allow you to select the desired connection style.

Typical Applications
- Electrical and electronic equipment
- Consumer goods
- Household equipment
- Building automation
- Industrial applications
- Machinery
- Medical equipment
- Electronic data processing equipment
- Office automation and datacom equipment
- Various noisy applications requiring high filter performance
- Lighting applications (due to high differential mode inductance)

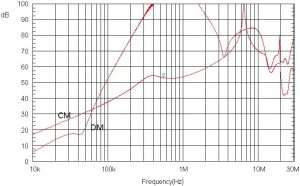

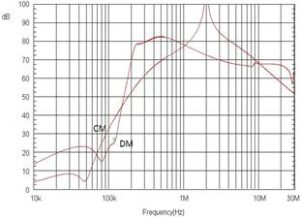

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

1A

3A

6A

10A

12A

16A

Mechanical Data

Connection style -06, 1 and 3A types

Connection style -06, 6 to 12 A types

Connection style -06, 16 A type

Connection style -08,16 A type

Technical Specifications

Maximum continuous operating voltage

250VAC, 50/60Hz

250VDC

Nominal operating voltage

230VAC

Rated currents

1 to 16 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> PE 2250 VDC for 2 sec

P –> N 1100 VDC for 2 sec

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Temperature range (operation and storage)

-25 °C to +100 °C (25/100/21)**

Altitude

2000m (above derating applies)**

Flammability corresponding to

Laces for -07 version: UL 94 VW-1

Terminal plastic for -06/-08 version: UL 94 V-0 Grommet for -07 version: UL 94 V-0

Certified to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

>1,550,000 h @ 40°C/230 V

1,600,000 h (N types) @ 40°C/230 V

maximum RMS operating voltage at rated frequency or the maximum DC operating voltage.

for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner sales office.

Filter Selection Table

Filter

Rated current @40℃（25℃）

[A]

Leakage current*

@250 VAC/50Hz

（@120VAC/60Hz）

[mA]

Power loss @25℃/DC

[W]

Inductance**

L1 L2

[mH] [µH]

Capacitance**

Cx Cy

[µF] [nF]

Resistance**

[kΩ]

Weight

[ɡ]

DL20080-1-06

1(1.2)

0.66（0.38）

2.6

22 490

0.33 4.7

1000

160

DL20080-3-06

3(3.5)

0.66（0.38）

3.7

9.8 160

0.47 4.7

470

240

DL20080-6-06

6(6.9)

0.66（0.38）

5.7

2.8 110

1 4.7

220

420

DL20080-10-06

10(11.5)

0.66（0.38）

8.6

4.5 60

1 4.7

220

620

DL20080-12-06

12(13.8)

0.66（0.38）

12.3

3.25 50

1 4.7

220

620

DL20080-16-06/08

16(18.4)

0.66（0.38）

9.0

2.8 43

1 4.7

220

1000

Maximum leakage under usual AC operating conditions (acc. IEC 60939-3).

Note: if the neutral line is interrupted, worst case leakage could reach twice this level.

Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10%

Dimensions

Frame size

10A

12A

16A

Tolerances

114.9

156

119

52.6

58.5

85.5

45.4

63.2

92.2

131.2

98.5

51.7

56.8

57.3

84.5

103

143

109

28.5

12.4

15.6

29.5

32.4

32.5

12.35

15.5

42.25

5.3

4.4

6.3

6.8

7.4

0.6

Connection style -06

6.3×0.8

Connection style -08

All dimensions in mm; 1 inch = 25.4mm

Tolerances according to: ISO 2768-m/EN 22768-m

Product Detalis

The difference between EMI filter and EMC filter

The Spring Breeze Is Like You, Radiant and Full of Youth—To Every Remarkable Woman at Jianli Technology

Product Detail

Features and Benefits

Typical Applications

Typical Filter Attenuation

Mechanical Data

Parameter table

Technical Specifications

Filter Selection Table

Dimensions

Tell me what you need

Maximum continuous operating voltage	250VAC, 50/60Hz 250VDC
Nominal operating voltage	230VAC
Rated currents	1 to 16 A @ 40°C
Operating frequency	DC to 400 Hz
High potential test voltage	P –> PE 2250 VDC for 2 sec P –> N 1100 VDC for 2 sec
Overvoltage category	II acc. IEC 60664-1
Pollution degree	2 acc. IEC 60664-1
Temperature range (operation and storage)	-25 °C to +100 °C (25/100/21)**
Altitude	2000m (above derating applies)**
Flammability corresponding to	Laces for -07 version: UL 94 VW-1 Terminal plastic for -06/-08 version: UL 94 V-0 Grommet for -07 version: UL 94 V-0
Certified to	UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939 (applies to AC and DC applications)
Design corresponding to	UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939
MTBF (Mil-HB-217F)	>1,550,000 h @ 40°C/230 V 1,600,000 h (N types) @ 40°C/230 V

Filter	Rated current @40℃（25℃） [A]	Leakage current* @250 VAC/50Hz （@120VAC/60Hz） [mA]	Power loss @25℃/DC [W]	Inductance L1 L2 [mH] [**µH]	Capacitance Cx Cy** [µF] [nF]	Resistance** R [kΩ]	Weight [ɡ]
DL20080-1-06	1(1.2)	0.66（0.38）	2.6	22 490	0.33 4.7	1000	160
DL20080-3-06	3(3.5)	0.66（0.38）	3.7	9.8 160	0.47 4.7	470	240
DL20080-6-06	6(6.9)	0.66（0.38）	5.7	2.8 110	1 4.7	220	420
DL20080-10-06	10(11.5)	0.66（0.38）	8.6	4.5 60	1 4.7	220	620
DL20080-12-06	12(13.8)	0.66（0.38）	12.3	3.25 50	1 4.7	220	620
DL20080-16-06/08	16(18.4)	0.66（0.38）	9.0	2.8 43	1 4.7	220	1000
