Features and Benefits

  • Middle-power filter for Class A compliance. With approval measurement also Class B compliance possible for some applications.
  • Extremely compact high-current filter solution with minimum space requirement.
  • EBT1filters are suited for power supplies for industrial installations.
  • EBT1also improves conducted immunity of installations.

Typical Applications

  • High-power motor drives, inverters and converters
  • Industrial three-phase systems
  • Large UPS
  • Machinery
  • Mining equipment
  • Wind turbines

Typical electrical schematic

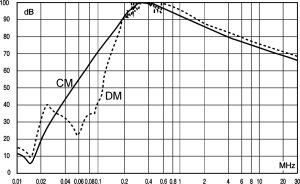

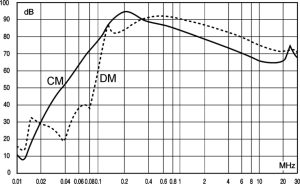

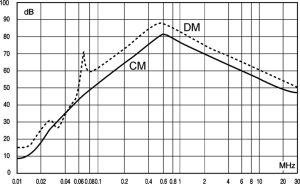

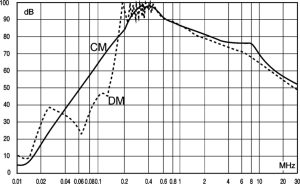

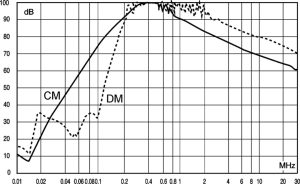

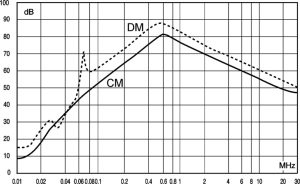

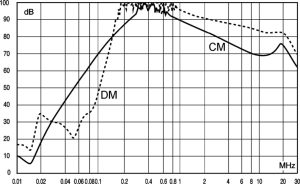

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

5A

10A

20A

25A

35A

50A

65A

80A

Mechanical Data

5A、10A



20A to 80A

Approvals & Compliances
