DL20030 Series

Features and Benefits

DL20030filters are designed for easy and fast chassis mounting.
DL20030N versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1.
DL20030S versions with low capacitance to earthfor safety critical applications with necessity for low leakage currents.
All filters provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
The higher inductivity versus amperage offers increased attenuation performance with same form factor compared to DL20010 and DL20020 filter series.
Various terminal options allow you to select the desired connection style.

Typical Applications
- Electrical and electronic equipment
- Consumer goods
- Household equipment
- Medical equipment
- Electronic data processing equipment
- Office automation and datacom equipment
- Various noisy applications requiring high filter performance

  Typical electrical schematic

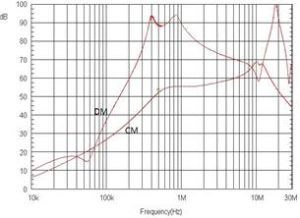

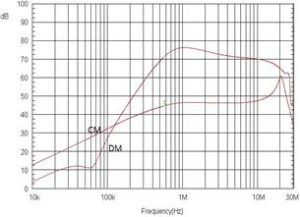

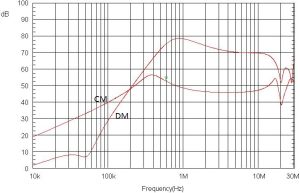

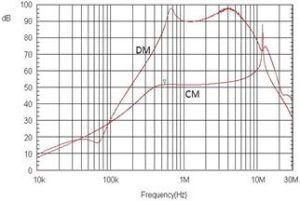

  Typical Filter Attenuation

  Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

  1A

  3A

  6A

  10A

  12A

  16A

  20A

  30A

  Mechanical Data

  Connection style -06, 1A type

  Connection style -06, 8 to 20 A types

  Connection style -06, 3 to 6 A types

  Connection style -08,20 to 30 A types

Technical Specifications

Maximum continuous operating voltage

250VAC, 50/60Hz

250VDC

Nominal operating voltage

230VAC

Rated currents

1 to 30 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> N 1100 VDC for 2 sec

P –> PE 2250 VDC for 2 sec

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Temperature range (operation and storage)

-25 ℃ to +100 ℃ (25/100/21)**

Altitude

2000m (above derating applies)**

Design corresponding to

UL 1283, CSA 22.2 No. 8 1986, IEC/EN 60939

MTBF (Mil-HB-217F)

≤10 A:>2,200,000 h @ 40°C/230 V

≥12 A:>1,200,000 h @ 40°C/230 V

maximum RMS operating voltage at rated frequency or the maximum DC operating voltage.

for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner sales office.

Filter Selection Table

Filter

Rated current

@40℃ (25℃)

[A]

Leakage current*

@250 VAC/50Hz

（@120VAC/60Hz）

[mA]

Power loss @25℃/DC

[W]

Inductance**

[mH]

Capacitance**

Cx Cy

[µF] [nF]

Resistance**

[kΩ]

Weight

[ɡ]

DL20030-1-06

1(1.1)

0.31(0.18)

0.9

0.22 2.2

1000

DL20030-3-06

3(3.4)

0.47(0.27)

2.2

0.33 3.3

1000

DL20030-4-06

4 (4.5)

0.47 (0.27)

2.9

0.33 3.3

1000

DL20030-6-06

6(6.7)

0.47(0.27)

3.2

0.47 4.7

680

100

DL20030-8-06

8 (8.9)

0.66 (0.38)

3.1

0.47 4.7

680

170

DL20030-10-06

10(11.2)

0.66(0.38)

5.3

0.47 4.7

680

196

DL20030-12-06

12(13.4)

0.66(0.38)

7.6

1.0 10

330

185

DL20030-16-06

16(17.9)

0.66(0.38)

6.1

1.0 10

330

225

DL20030-20-06/08

20(22.4)

0.79(0.45)

4.6

1.0 10

330

285

DL20030-30-08

30(33.5)

0.79(0.45)

6.0

1.0 10

330

326

Maximum leakage under usual AC operating conditions (acc. IEC 60939-3).

Note: if the neutral line is interrupted, worst case leakage could reach twice this level.

Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10%

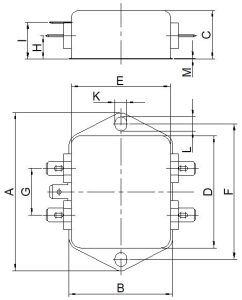

Dimensions

Frame size

10A

12A

16A

20A

30A

Tolerances

46.6

43.5

50.5

63.2

32.5

44.5

51.7

28.5

10.5

16.5

29.5

21.75

25.25

20.45

5.3

6.3

0.4

0.6

Connection style -06

6.3×0.8

Connection style -08

All dimensions in mm; 1 inch = 25.4mm

Tolerances according to: ISO 2768-m/EN 22768-m

Product Detalis
