DL20010 Series

Features and Benefits

DL20010filters are designed for easy and fast chassis mounting.
DL20010 N versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1.
DL20010 S versions with low capacitance to earth for safety critical applications with necessity for low leakage currents
All filters provide a general purpose conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
DL20010 filters can be used to cover a broad range of usage and they offer a good size/amperage ratio.
Various terminal options allow you to select the desired connection style.

Typical Applications

Electrical and electronic equipment
Consumer goods
Household equipment
Medical equipment
Office automation equipment
Datacom equipment

Typical electrical schematic

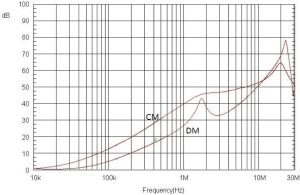

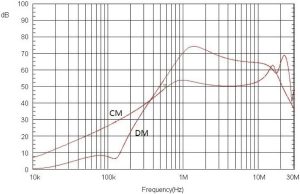

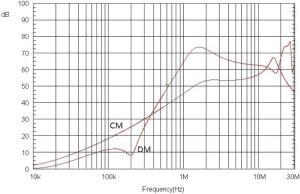

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

10A

12A

16A

20A

30A

Mechanical Data

Connection style -06, 1 to 12 A types

Connection style -06, 16 to 20 A types

Connection style -08, 20 A types

Connection style -08, 30 A types

Approvals & Compliances

Technical Specifications

Maximum continuous operating voltage

250VAC, 50/60Hz

250VDC

Nominal operating voltage

230VAC

Rated currents

1 to 30 A @ 40°C

Operating frequency

DC to 400 Hz

High potential test voltage

P –> N 1100 VDC for 2 sec

P –> PE 2250 VDC for 2 sec

Overvoltage category

II acc. IEC 60664-1

Pollution degree

2 acc. IEC 60664-1

Temperature range (operation and storage)

-25 °C to +100 °C (25/100/21)**

Altitude

2000m (above derating applies)**

MTBF (Mil-HB-217F)

>1,250,000 h @ 40°C/230 V

3,200,000 h (N types) @ 40°C/230 V

maximum RMS operating voltage at rated frequency or the maximum DC operating voltage.

for dedicated requests exceeding this specification (e.g. -40 °C or higher altitude) please contact your local Schaffner sales office.

Filter Selection Table

Filter

Rated current @40℃（25℃）

[A]

Leakage current*

@250 VAC/50Hz

@120VAC/60Hz）

[mA]

Power loss @25℃/DC

[W]

Inductance**

[mH]

Capacitance**

Cx Cy

[µF] [nF]

Resistance**

[kΩ]

Weight

[ɡ]

DL20010-1-06

1(1.15)

0.66(0.38)

0.8

0.1 4.7

1000

DL20010-3-06

3(3.45)

0.66(0.38)

1.1

2.5

0.1 4.7

1000

DL20010-6-06

6(6.9)

0.66(0.38)

1.7

0.1 4.7

1000

DL20010-10-06

10(11.5)

0.66(0.38)

2.5

0.8

0.1 4.7

1000

DL20010-12-06

12(13.8)

0.66(0.38)

3.6

0.7

0.1 4.7

1000

DL20010-16-06

16(18.4)

0.66(0.38)

2.5

0.7

0.1 4.7

1000

140

DL20010-20-06/08

20(23)

0.66(0.38)

3.8

0.6

0.1 4.7

1000

210

DL20010-30-08

30(34.5)

0.79(0.46)

14.7

0.7

0.47 10

1000

470

Maximum leakage under usual AC operating conditions (acc. IEC 60939-3).

Note: if the neutral line is interrupted, worst case leakage could reach twice this level.

Tolerances apply: Inductance: -30/+50%, Capacitance: ±20%, Resistance: ±10%

Dimensions

Frame size

10A

12A

16A

20A

30A

Tolerances

114.9

46.6

51.7

56.8

43.5

50.5

63.2

92.2

32.5

44.5

50.7

55.8

103

28.5

10.5

32.4

21.8

15.5

5.3

6.3

6.8

0.4

0.6

Connection style -06

6.3×0.8

Connection style -08

All dimensions in mm; 1 inch = 25.4mm

Tolerances according to: ISO 2768-m/EN 22768-m

Product Detalis

Reason for unbalanced protection action of DC filter capacitor

The Spring Breeze Is Like You, Radiant and Full of Youth—To Every Remarkable Woman at Jianli Technology

Product Detail

Features and Benefits

Typical Applications

Typical electrical schematic

Typical Filter Attenuation

Mechanical Data

Approvals & Compliances

Parameter table

Technical Specifications

Filter Selection Table

Dimensions

Tell me what you need

Maximum continuous operating voltage	250VAC, 50/60Hz 250VDC
Nominal operating voltage	230VAC
Rated currents	1 to 30 A @ 40°C
Operating frequency	DC to 400 Hz
High potential test voltage	P –> N 1100 VDC for 2 sec P –> PE 2250 VDC for 2 sec
Overvoltage category	II acc. IEC 60664-1
Pollution degree	2 acc. IEC 60664-1
Temperature range (operation and storage)	-25 °C to +100 °C (25/100/21)**
Altitude	2000m (above derating applies)**
MTBF (Mil-HB-217F)	>1,250,000 h @ 40°C/230 V 3,200,000 h (N types) @ 40°C/230 V

Filter	Rated current @40℃（25℃） [A]	Leakage current* @250 VAC/50Hz @120VAC/60Hz） [mA]	Power loss @25℃/DC [W]	Inductance L [mH]**	Capacitance Cx Cy** [µF] [nF]	Resistance** R [kΩ]	Weight [ɡ]
DL20010-1-06	1(1.15)	0.66(0.38)	0.8	12	0.1 4.7	1000	65
DL20010-3-06	3(3.45)	0.66(0.38)	1.1	2.5	0.1 4.7	1000	65
DL20010-6-06	6(6.9)	0.66(0.38)	1.7	1	0.1 4.7	1000	65
DL20010-10-06	10(11.5)	0.66(0.38)	2.5	0.8	0.1 4.7	1000	85
DL20010-12-06	12(13.8)	0.66(0.38)	3.6	0.7	0.1 4.7	1000	85
DL20010-16-06	16(18.4)	0.66(0.38)	2.5	0.7	0.1 4.7	1000	140
DL20010-20-06/08	20(23)	0.66(0.38)	3.8	0.6	0.1 4.7	1000	210
DL20010-30-08	30(34.5)	0.79(0.46)	14.7	0.7	0.47 10	1000	470
