Features and Benefits
- Structural integration: Core components (inductors, capacitors) are highly integrated, with metal casing packaging, compact in size and high in mechanical strength.
- Three-phase targeted design: specifically built for three-phase three-wire/four-wire power supply systems, compatible with both balanced and unbalanced loads, no additional configuration required.

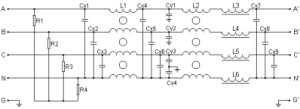

- More precise interference suppression: each phase has an independent filtering circuit, matching the three-phase phase characteristics to avoid phase interference and ensure the accuracy of equipment operation.
- Optimize power quality, attenuate high-frequency noise, make the output power close to a pure sine wave, reduce the impact of voltage fluctuations on precision equipment, and extend the equipment’s service life.
Typical Applications
- Power electronic equipment
- Industrial Motors and Drive Systems
- New Energy and Power Systems
- Medical equipment
Typical Filter Attenuation
Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

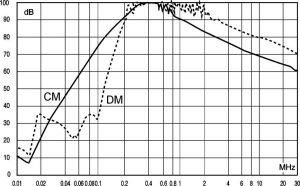

5A

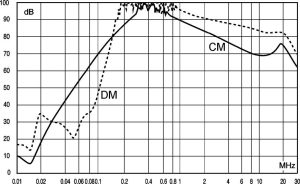

10A

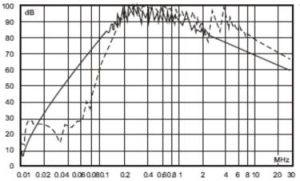

20A

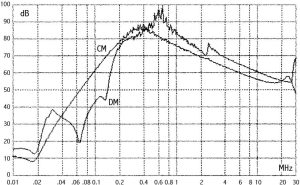

25A

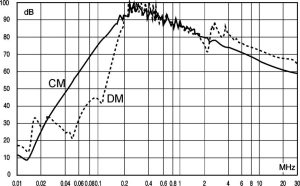

35A
Mechanical Data
5A、10A、20A
25A、35A
