Features and Benefits

  • Standard interface: Equipped with IEC standard sockets, such as C14 and C20 interfaces in IEC 60320-1, compatible with different international power cord designs, making it convenient for devices to be used in various regions around the world..
  • Compact design: small in size with a compact structure, taking up little space, making it easy to install in various electrical and electronic devices.
  • Multifunctional integration: Some IEC inlet filters also integrate functions such as fuses, voltage selection, and switches, which can simplify the mechanical design and bill of materials of the equipment.

Typical Applications

  • Medical equipment
  • Industrial Control and Electronic Equipment
  • Office and Testing Measurement Equipment
  • Consumer Electronics and Home Appliances
  • Communication and Network Equipment

Typical electrical schematic

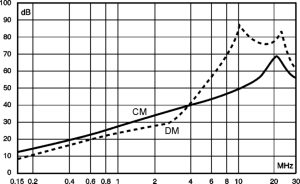

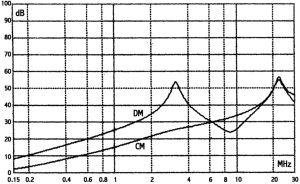

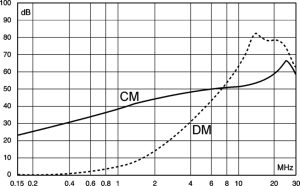

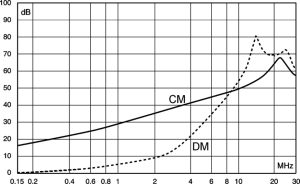

Typical Filter Attenuation

Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

3A

6A

10A

15A

Mechanical Data

3DZ2/6DZ2/10DZ2/15DZ2

All dimensions in mm; 1 inch = 25.4mm

Tolerances according to: ISO 2768-m/EN 22768-m

Approvals & Compliances
