Features and Benefits
- DL20060two-stage filters are designed for easy and fast chassis mounting.
- DL20060N versions without capacitors to earth comply to 1MOP for ME (medical equipment) acc. IEC 60601-1.
- DL20060S versions with low capacitance to earth for safety critical applications with necessity for low leakage currents.
- All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behavior.
- DL20060 two-stage filters are designed for noisy applications requiering good differential and common-mode attenuation
- DL20060 filters are also available as single-stage filters (DL20010 series).
- Various terminal options allow you to select the desired connection style.
Typical Applications
- Electrical and electronic equipment
- Consumer goods
- Household equipment
- Building automation
- Industrial applications
- Machinery
- Medical equipment
- Electronic data processing equipment
- Office automation and datacom equipment
- Various noisy applications requiring high filter performance
Typical electrical schematic

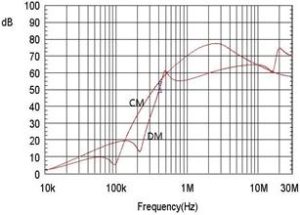

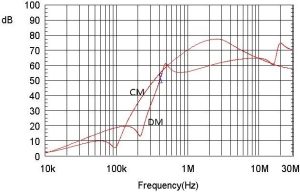

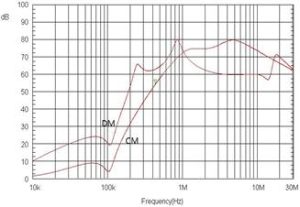

Typical Filter Attenuation
Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM);
asymmetrical 50 Ω/50 Ω -> Common Mode (CM)
1A
3A
6A
10A
12A
16A
20A
30A
Mechanical Data
Connection style -06, 1 to 12 A types
Connection style -06, 16 A types
Connection style -06, 20 A types
Connection style -08, 20 A types
Connection style -08, 30 A types
