Features and Benefits

  • The extremely compact and slim filter design allows a trouble-free installation even where the available mounting space is minimal.
  • With new additional filter types providing safety terminal blocks, the most preferred connection style can be chosen fast and easy. This helps to stay in line with the electrical connection concept of a given application.
  • Filter operation on the mains input side of consumers increases their reliability and conducted immunity significant.

Typical Applications

  • Three-phase variable speed motor drives, servo drives, inverters and converters
  • Three-phase variable speed motor drives, servo drives, inverters and converters
  • HVAC equipment, elevators, power supplies, UPS and further three-phase applications

    Typical electrical schematic

    5~65A Types

    80~200A Types

    250~1000A Types

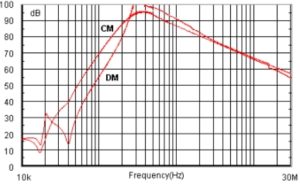

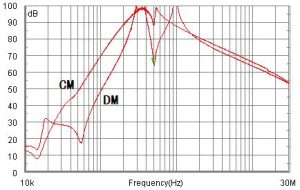

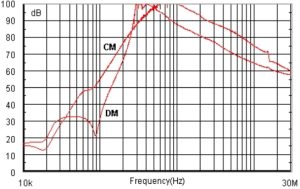

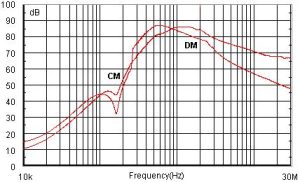

    Typical Filter Attenuation

    Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)

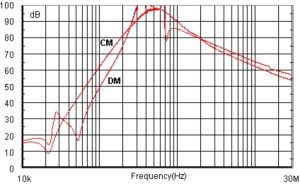

    5A

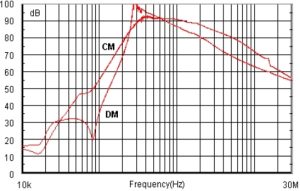

    10A

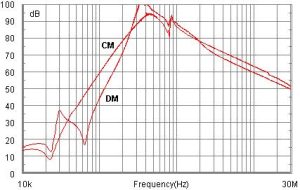

    16A

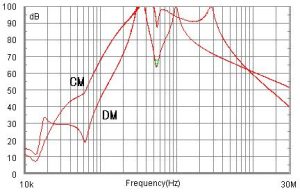

    20A

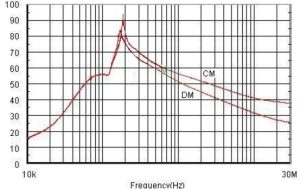

    25A

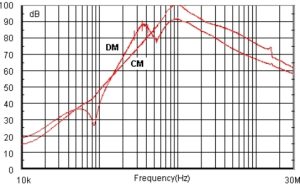

    35A

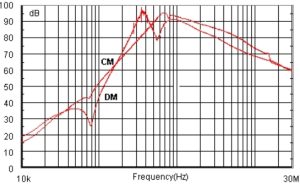

    50A

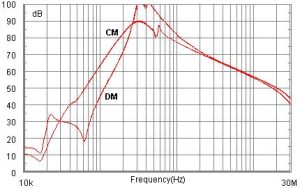

    65A

    80A and 100A

    130A

    160A

    200A

    250、300、400A

    600A

    800A

    1000A

    Mechanical Data

    5A、10A、16A

    20A、25A

    35A、50A、65A

    80A、100A、130A、160A、200A

    250A、300A、400A、600A、800A

    1000A
