Features and Benefits
- High-power filter for Class A compliance. With approval measurement also Class B compliance possible for some applications.
- Extremely compact high-current filter solution with minimum space requirement.
- EBK3 filters are suited for power supplies for industrial installations.
- EBK3 also improves conducted immunity of installations.
Typical Applications
- High-power motor drives, inverters and converters
- Industrial three-phase systems
- Large UPS
- Machinery
- Mining equipment
- Wind turbines

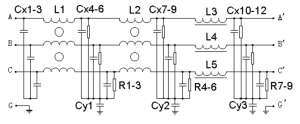

Typical electrical schematic

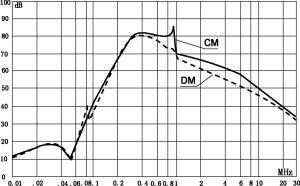

Typical Filter Attenuation
Per CISPR 17: symmetrical 50 Ω/50 Ω -> Differential Mode (DM); asymmetrical 50 Ω/50 Ω -> Common Mode (CM)
300A
400A
600A
800A
Mechanical Data
100A to 200A
Approvals & Compliances
